WeatherTite
Roll-Up Door

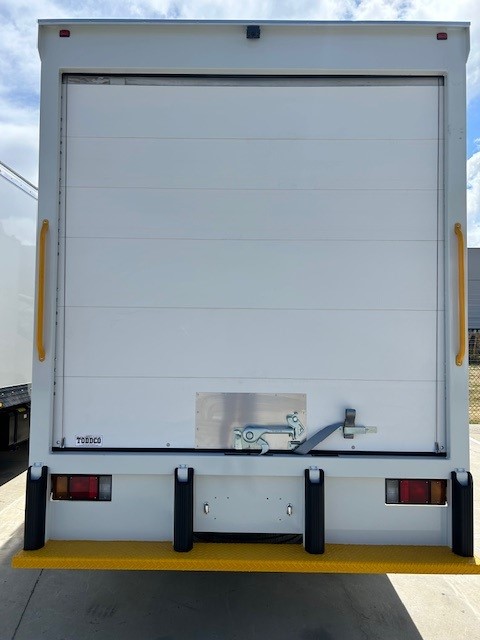

The WeatherTite roll-up door is designed to deliver exceptional longevity and long-term value for trucks and trailers operating in all weather conditions. Manufactured from a durable polycomposite material, the WeatherTite door is completely impervious to moisture, eliminating the most common causes of door failure such as swelling, warping, delamination, finish deterioration, and rot. Built to withstand daily fleet operations, WeatherTite provides reliable performance in demanding environments.
Product Overview
WeatherTite is an innovative TODCO roll-up door solution engineered to remove concerns associated with water penetration. Its rugged construction and advanced panel design ensure dependable operation, reduced maintenance, and extended service life, making it a proven choice for fleets seeking maximum value.
Features
- Polycomposite construction impervious to moisture
- Tough double-wall panels extruded in one piece for added strength
- Unique panel joint design for superior water resistance
- Smooth, high-quality finish (painting optional)
- Designed for long service life in harsh environments
Panel Construction
The WeatherTite door panels are manufactured from a one-piece extruded polycomposite material with a double-wall design. Horizontal reinforcement ribs increase panel strength, while a unique joint configuration forces water to flow downward, maintaining proper panel alignment and rigidity.
- Double-wall polycomposite panels
- Horizontal reinforcement ribs for added strength
- Unique joint configuration for improved water management
- No through-rivets on centre hinges for a smooth exterior surface
Hardware & Configuration
- Accepts TODCO standard hardware
- Single counterbalance spring for effortless operation
- Three rows of centre hinges standard on panels 73″ or wider
- Strong four-knuckle end hinges for durability
- Aluminium reinforcement straps required for door openings over 87″ wide
Sealing System
- Adjustable top fixtures with rubber head seal for a tight top seal
- Side seals supplied as standard
- Standard bottom seal for weather protection
Finish
- Smooth polycomposite surface with high-quality finish
- Suitable for automotive-quality paint finishes or decal application
- Excellent adhesion due to smooth, rivet-free panel surfaces
Compatibility
- WeatherTite doors are designed to drop into all existing ¾” track configurations, allowing for easy replacement and retrofit applications.
Warranty
WeatherTite Panel 12-month Limited Warranty
TODCO warrants the WeatherTite door panels to the original end-user purchaser to be free from defects in material and workmanship for a period of twelve (12) months from the date of delivery, subject to all terms, conditions, and limitations.
Applications
- Dry freight trucks and trailers
- Fleet and logistics operations
- Environments exposed to frequent rain and moisture
- Long-haul and regional transport
