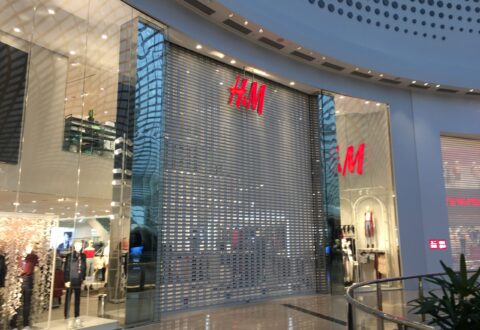

CURTAIN

Constructed using 100 x 1.0 mm interlocking slats, in galvanised steel, roll formed in house at Mirage Doors. Slat thickness is dependent on the opening width and the security requirements of the project. The slats are retained in position using nylon end clips, fitted to every second slat.

SIZE

The maximum shutter size is 10000mm wide x 8000mm high.

DRUM

Fabricated from mild steel or galvanised tube with the outside diameter and thickness appropriate to the size and application of the steel roller shutter.

GUIDES

75MM X 37MM roll formed steel channel as standard

  • Optional 100mm x 37mm roll formed steel channel

Windlocks are not compatible with high cycle roller shutters.

BRACKETS

Mirage will provide a pair of brackets fabricated from prime painted mild steel, with the steel gauge to suit the shutter sizes.

BOTTOM RAIL

Extruded aluminium and is designed to accept a weatherseal if required.

An optional steel box section is available

OPERATION

Electric operation  1 h.p. / 1.5 h.p./ 2.0 h.p 3 phase motor / gearbox c/- logic control box and photo – electric beam protection. Supply, install & interfacing of access control systems are by others. This motor includes emergency chain operation in the event of power failure.

FINISH OPTIONS

  • Galvabond steel (standard);
  • Dulux Duralloy or Interpon D1000 powdercoat finishes are suitable for S100 roller shutters.

SPECIAL NOTES

  • The power supply required for the motor is either:
    • 3 phase 415v with neutral (10 amp), located within one metre of the motor;
    • Single phase hard wired (10 amp), located within one metre of the motor.
  • Work by others:
    • Power supply provision if required;
    • Structurally adequate wall / mounting points to support the roller shutter;
    • Adequate headroom & sideroom as per Tech. Data sheets to ensure successful operation
  • Product warranty – 12 months.
